input id x y
1 1 2
2 3 3
3 5 6
4 7 5
5 9 9
end
summarize x y
correlate x y
regress y x
predict yhat
predict resid, residual
predict zresid, rstandard
plot y x
graph y yhat x, connect(.s)
plot resid x
plot zresid x

-----------------------------------------------

summarize x y

Variable |     Obs        Mean   Std. Dev.       Min        Max
---------+-----------------------------------------------------
       x |       5           5   3.162278          1          9
       y |       5           5   2.738613          2          9

correlate x y

(obs=5)

         |        x        y
---------+------------------
       x |   1.0000
       y |   0.9238   1.0000

regress y x

  Source |       SS       df       MS                  Number of obs =       5
---------+------------------------------               F(  1,     3) =   17.45
   Model |       25.60     1       25.60               Prob > F      =  0.0250
Residual |        4.40     3  1.46666667               R-squared     =  0.8533
---------+------------------------------               Adj R-squared =  0.8044
   Total |       30.00     4        7.50               Root MSE      =  1.2111

------------------------------------------------------------------------------
       y |      Coef.   Std. Err.       t     P>|t|       [95% Conf. Interval]
---------+--------------------------------------------------------------------
       x |         .8   .1914854      4.178   0.025       .1906079    1.409392
   _cons |          1        1.1      0.909   0.430      -2.500691    4.500691
------------------------------------------------------------------------------

predict yhat
predict resid, residual
predict zresid, rstandard
plot y x

       9 +
         |                                                                 *
         |
         |
         |
         |
         |
         |
         |
         |
    y    |                                 *
         |
         |                                                 *
         |
         |
         |
         |
         |
         |                 *
         |
       2 + *
          +----------------------------------------------------------------+
                1                        x                               9

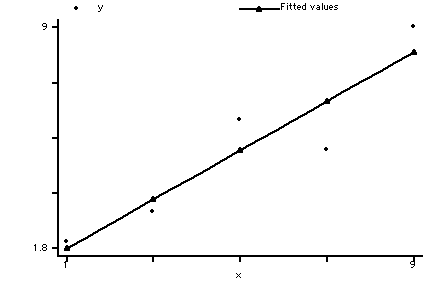

graph y yhat x, connect(.s)



plot resid x

       1 +
         |                                 *
         |
         |                                                                 *
         |
         |
    R    |
    e    | *
    s    |
    i    |
    d    |
    u    |
    a    |                 *
    l    |
    s    |
         |
         |
         |
         |
         |
    -1.6 +                                                 *
          +----------------------------------------------------------------+
                1                        x                               9

plot zresid x

 1.04447 +
    S    |                                                                 *
    t    |                                 *
    a    |
    n    |
    d    |
    a    |
    r    | *
    d    |
    i    |
    z    |
    e    |
    d    |                 *
         |
    r    |
    e    |
    s    |
    i    |
    d    |
    u    |
-1.57908 +                                                 *
          +----------------------------------------------------------------+
                1                        x                               9
