Ed230B/C

Linear Statistical Models

Trend Analysis

Updated for Stata 11


Schematic of CR-4 with Example Data

Consider again the following Completely Randomized 4 group design:

Levela1 a2a3a4Total
3
6
3
3
1
2
2
2
4
5
4
3
2
3
4
3
7
8
7
6
5
6
5
6
7
8
9
8
10
10
9
11
Mean2.75 3.56.259.05.375

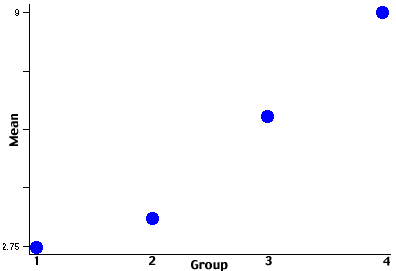

Plot of the Group Means

Inspection of the plot of group means suggests, that although it is possible to fit a straight line through the points, there also seems to be a little bit of curvalinearnity present.

Trend analysis partitions the sum of squares for the model into portions due to linear trend, quadratic trend, cubic trend, etc. If there are k groups it is possible to look at up to k - 1 trends, although often researchers combine together all trends above quadratic or cubic.

Coefficients of Orthogonal Polynomials

Trend analysis is performed using coefficients of orthogonal polynomials. For the four group design the coefficients are:

Group ->    1   2   3   4
Linear     -3  -1   1   3
Quadratic   1  -1  -1   1
Cubic      -1   3  -3   1

Here is a table with more coefficients of orthogonal polynomials.

Plotting Coefficients of Orthogonal Polynomials

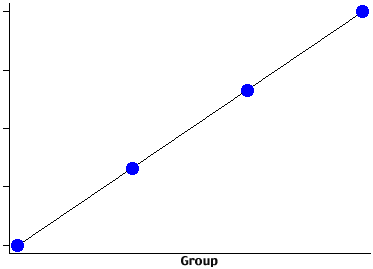

Plot of Linear Trend

Plot of Quadratic Trend

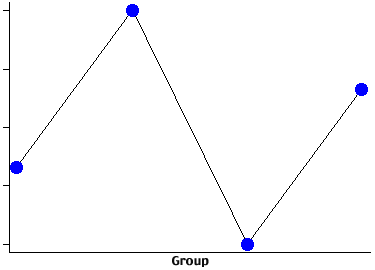

Plot of Cubic Trend

Using the Coefficients of Orthogonal Polynomials

One way to perform trend analysis is to use the coefficients of orthogonal polynomials to weight the group sums to compute sums of squares for each of the trends in a manner very similar to computing planned orthogonal comparisons. Using the coefficients in this manner yields the following ANOVA Summary Table:

Source      SS      df        MS          F
Between Groups      194.5      3      64.833      44.28
Linear Trend      184.9      1      184.900      126.30
Non-Linear      9.6      2      4.800      3.28
Quadratic Trend      8.0       1      8.000      5.46
Cubic Trend       1.6      1      1.600      1.09
Within Groups      41.0      28      1.464
Total      235.5      31

Stata Example

An alternative is to apply the coefficients of orthogonal polynomials directly to the observations and to analyze using regression.

input y grp o1 o2 o3
 3 1 -3  1 -1
 6 1 -3  1 -1
 3 1 -3  1 -1
 3 1 -3  1 -1
 1 1 -3  1 -1
 2 1 -3  1 -1
 2 1 -3  1 -1
 2 1 -3  1 -1
 4 2 -1 -1  3
 5 2 -1 -1  3
 4 2 -1 -1  3
 3 2 -1 -1  3
 2 2 -1 -1  3
 3 2 -1 -1  3
 4 2 -1 -1  3
 3 2 -1 -1  3
 7 3  1 -1 -3
 8 3  1 -1 -3
 7 3  1 -1 -3
 6 3  1 -1 -3
 5 3  1 -1 -3
 6 3  1 -1 -3
 5 3  1 -1 -3
 6 3  1 -1 -3
 7 4  3  1  1
 8 4  3  1  1
 9 4  3  1  1
 8 4  3  1  1
10 4  3  1  1
10 4  3  1  1
 9 4  3  1  1
11 4  3  1  1
end

anova y grp

                     Number of obs =      32     R-squared     =  0.8259
                     Root MSE      = 1.21008     Adj R-squared =  0.8072

            Source |  Partial SS    df       MS           F     Prob > F
        -----------+----------------------------------------------------
             Model |      194.50     3  64.8333333      44.28     0.0000
                   |
               grp |      194.50     3  64.8333333      44.28     0.0000
                   |
          Residual |       41.00    28  1.46428571
        -----------+----------------------------------------------------
             Total |      235.50    31  7.59677419

anovacontrast grp, values(-3 -1 1 3) title(linear)

linear
Contrast variable grp (-3 -1 1 3)
source           SS          df      MS        Dep Var  =        y
---------+---------------------------------    N of obs =       32
contrast |      184.9         1    184.9000    F        =   126.27
error    |         41        28      1.4643    Prob > F =   0.0000
---------+---------------------------------

anovacontrast grp, values(1 -1 -1 1) title(quadratic)

quadratic
Contrast variable grp (1 -1 -1 1)
source           SS          df      MS        Dep Var  =        y
---------+---------------------------------    N of obs =       32
contrast |          8         1      8.0000    F        =     5.46
error    |         41        28      1.4643    Prob > F =   0.0268
---------+---------------------------------

anovacontrast grp, values(-1 3 -3 1) title(cubic)

cubic
Contrast variable grp (-1 3 -3 1)
source           SS          df      MS        Dep Var  =        y
---------+---------------------------------    N of obs =       32
contrast |        1.6         1      1.6000    F        =     1.09
error    |         41        28      1.4643    Prob > F =   0.3048
---------+---------------------------------

regress y o1 o2 o3

      Source |       SS       df       MS              Number of obs =      32
-------------+------------------------------           F(  3,    28) =   44.28
       Model |      194.50     3  64.8333333           Prob > F      =  0.0000
    Residual |       41.00    28  1.46428571           R-squared     =  0.8259
-------------+------------------------------           Adj R-squared =  0.8072
       Total |      235.50    31  7.59677419           Root MSE      =  1.2101

------------------------------------------------------------------------------
           y |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
          o1 |      1.075    .095665    11.24   0.000     .8790392    1.270961
          o2 |         .5   .2139134     2.34   0.027     .0618183    .9381817
          o3 |        -.1    .095665    -1.05   0.305    -.2959608    .0959608
       _cons |      5.375   .2139134    25.13   0.000     4.936818    5.813182
------------------------------------------------------------------------------

test o1  /*  linear  */

 ( 1)  o1 = 0.0

       F(  1,    28) =  126.27
            Prob > F =    0.0000

test o2  /*  quadratic  */

 ( 1)  o2 = 0.0

       F(  1,    28) =    5.46
            Prob > F =    0.0268

test o3  /*  cubic  */

 ( 1)  o3 = 0.0

       F(  1,    28) =    1.09
            Prob > F =    0.3048

test o2 o3  /*  nonlinear  */

 ( 1)  o2 = 0.0
 ( 2)  o3 = 0.0

       F(  2,    28) =    3.28
            Prob > F =    0.0526

Using anovalator

This time we will use the user written program anovalator with coefficients of orthogonal polynomials to perform the trend analsis. We can run either regress or anova so we will use the former. The z-vaalue from anovalator will be the same as the t-tvaues from the regression above.

regress y i.grp

regress y i.grp

      Source |       SS       df       MS              Number of obs =      32
-------------+------------------------------           F(  3,    28) =   44.28
       Model |       194.5     3  64.8333333           Prob > F      =  0.0000
    Residual |          41    28  1.46428571           R-squared     =  0.8259
-------------+------------------------------           Adj R-squared =  0.8072
       Total |       235.5    31  7.59677419           Root MSE      =  1.2101

------------------------------------------------------------------------------
           y |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         grp |
          2  |        .75   .6050384     1.24   0.225    -.4893649    1.989365
          3  |        3.5   .6050384     5.78   0.000     2.260635    4.739365
          4  |       6.25   .6050384    10.33   0.000     5.010635    7.489365
             |
       _cons |       2.75   .4278267     6.43   0.000     1.873637    3.626363
------------------------------------------------------------------------------

/*  linear trend  */

anovalator grp, wgt(-3  -1   1   3) quietly

anovalator contrast for grp

 ( 1)  - 3*1bn.grp - 2.grp + 3.grp + 3*4.grp = 0

------------------------------------------------------------------------------
             |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         (1) |       21.5   1.913299    11.24   0.000        17.75       25.25
------------------------------------------------------------------------------

/*  quadratic trend  */

anovalator grp, wgt(1  -1  -1   1) quietly

anovalator contrast for grp

 ( 1)  1bn.grp - 2.grp - 3.grp + 4.grp = 0

------------------------------------------------------------------------------
             |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         (1) |          2   .8556535     2.34   0.019       .32295     3.67705
------------------------------------------------------------------------------

/*  cubic trend  */

anovalator grp, wgt(-1   3  -3   1) quietly

anovalator contrast for grp

 ( 1)  - 1bn.grp + 3*2.grp - 3*3.grp + 4.grp = 0

------------------------------------------------------------------------------
             |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         (1) |         -2   1.913299    -1.05   0.296    -5.749998    1.749998
------------------------------------------------------------------------------
Using orthpoly

One more try, this time using the orthpoly command.

orthpoly grp, gen(p*) deg(3)

tab1 p*

-> tabulation of p1

deg=1 orth. |
  poly. for |
        grp |      Freq.     Percent        Cum.
------------+-----------------------------------
  -1.341641 |          8       25.00       25.00
  -.4472136 |          8       25.00       50.00
   .4472136 |          8       25.00       75.00
   1.341641 |          8       25.00      100.00
------------+-----------------------------------
      Total |         32      100.00

-> tabulation of p2

deg=2 orth. |
  poly. for |
        grp |      Freq.     Percent        Cum.
------------+-----------------------------------
         -1 |          8       25.00       25.00
         -1 |          8       25.00       50.00
          1 |          8       25.00       75.00
          1 |          8       25.00      100.00
------------+-----------------------------------
      Total |         32      100.00

-> tabulation of p3

deg=3 orth. |
  poly. for |
        grp |      Freq.     Percent        Cum.
------------+-----------------------------------
  -1.341641 |          8       25.00       25.00
  -.4472136 |          8       25.00       50.00
   .4472136 |          8       25.00       75.00
   1.341641 |          8       25.00      100.00
------------+-----------------------------------
      Total |         32      100.00

regress y p*

      Source |       SS       df       MS              Number of obs =      32
-------------+------------------------------           F(  3,    28) =   44.28
       Model |       194.5     3  64.8333333           Prob > F      =  0.0000
    Residual |          41    28  1.46428571           R-squared     =  0.8259
-------------+------------------------------           Adj R-squared =  0.8072
       Total |       235.5    31  7.59677419           Root MSE      =  1.2101

------------------------------------------------------------------------------
           y |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
          p1 |   2.403773   .2139134    11.24   0.000     1.965591    2.841955
          p2 |         .5   .2139134     2.34   0.027     .0618183    .9381817
          p3 |  -.2236068   .2139134    -1.05   0.305    -.6617885    .2145749
       _cons |      5.375   .2139134    25.13   0.000     4.936818    5.813182
------------------------------------------------------------------------------
